XGP Series

Horizontal End Suction Centrifugal Pump (OH1) ANSI B73.1M

XTF manufactures ANSI B73.1M standard in a large range of metallic pumps, casting in various materials of construction to provide solutions for any chemical process applications.

Our XGP Series pumps follow the ANSI pump dimensions as well as the ASA 150 flange dimensions with raised faces. XTF offers these pumps up to 6,000gpm (1,200m³/h) and up to 500ft (150m) of differential head.

XGP Series pumps are directly interchangeable with Gould's 3196 pump models including parts and components.

XTF ANSI pumps are designed to handle pressures up to 20kg/cm² which allows for an extended life of the pump in various chemical process applications. The variety of applications include pharmaceutical, refineries, caustics, textiles, steel plants, fertilizers, distilleries, mineral processing, starch & corn industry and many more.

XGP Performance

Maximum Capacity: 7,400gpm (1,650m³/h)
Maximum TDH: 725ft (220m)
Temperature Range: -75 to 500°F (-60 to 260°C)
Maximum Pressure: 370psi (25bar)
Designed according to ANSI B73.1M standard.

XGP Features

Back Pull-out Design
Built according to ANSI B73.1M
Big Bore & Taper Bore Available
External Impeller Adjustment
Maximum Interchangeability
Fully Open Impeller
29 Sizes
Heavy Duty Casings
Ductile Iron Frame Adapter
Wide range of materials available

XGP Applications

Oil & Gas	Water & Wastewater	Pulp & Paper
Refineries	General Industry	Power Generation
Foundries	Food & Beverage	Semiconductors
Textile Industry	Chemical & Petrochemical	Steel & Mill Industry

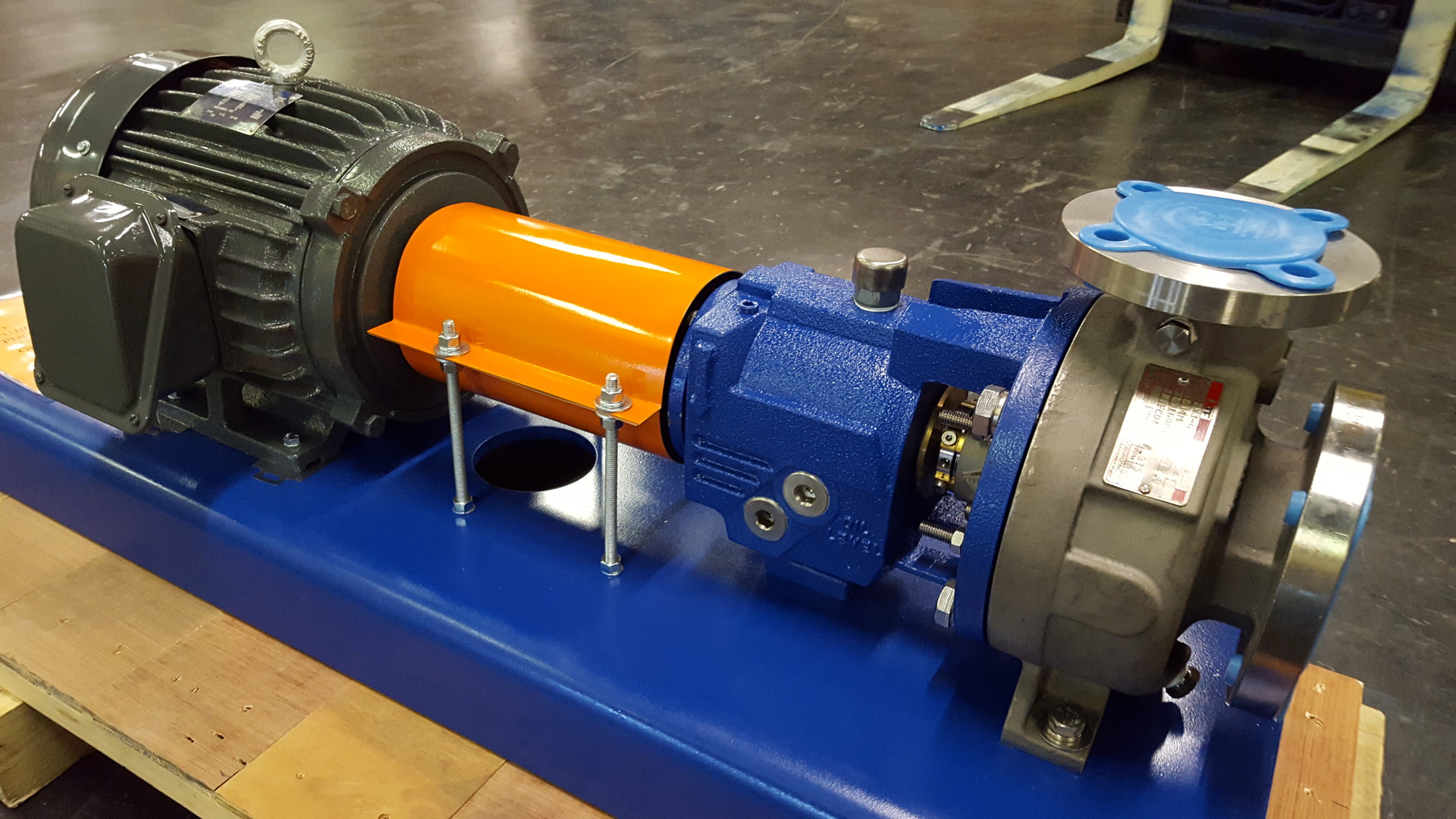

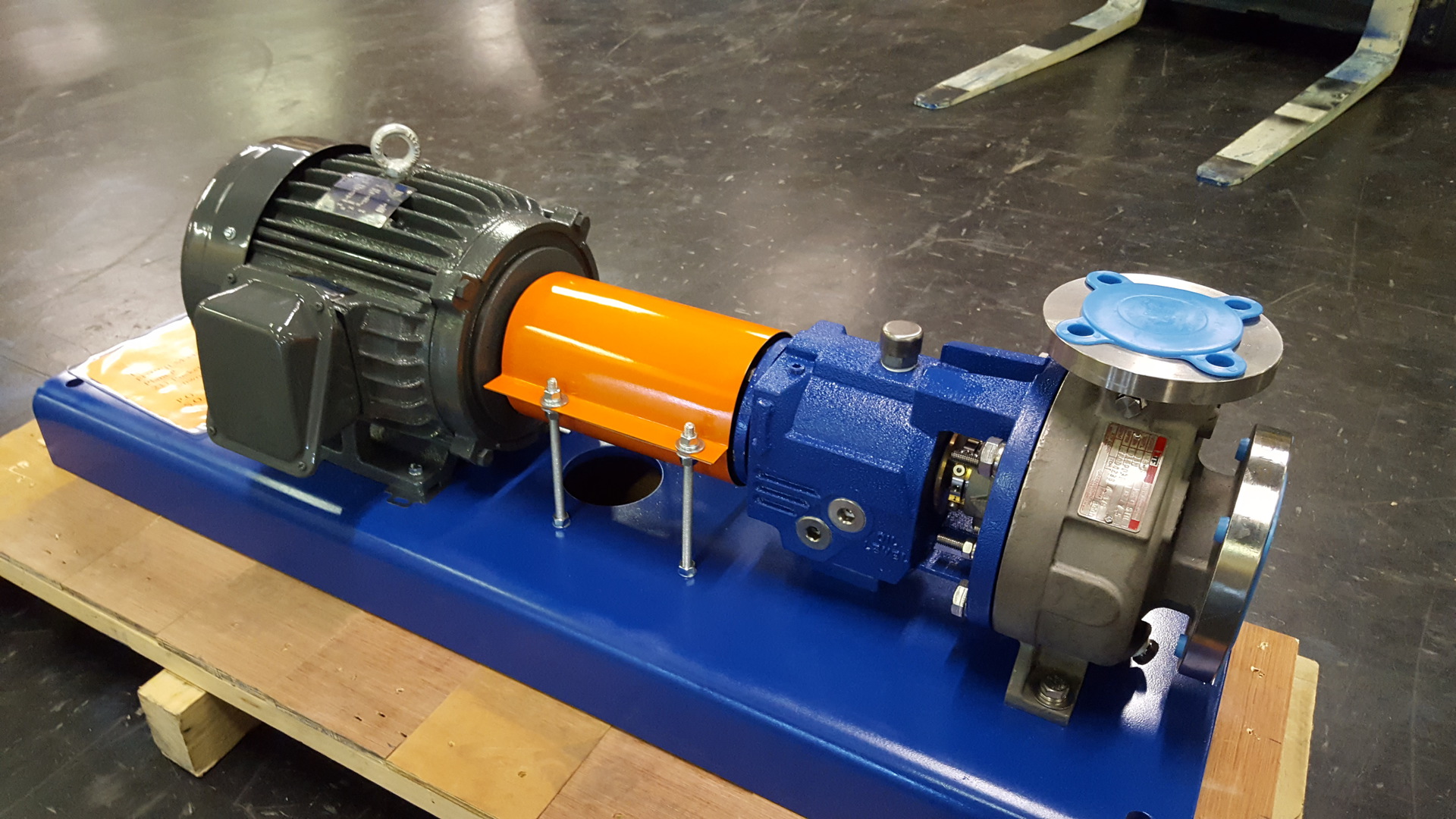

XGP Images

XGP Literature

Select the literature below for XGP Series to access the corresponding document.

XGP Brochure	XGP Drawings
XGP Curves	XGP Manuals

Check out our Resource Center to view, print or download our product catalog, pump brochures, IOM manuals, performance curves, dimensional drawings and more.

XGP Pump Sizes

Select the pump size below to view, print or download the corresponding XGP dimensional drawing and performance curves.

Size	50Hz			60Hz
1 x 1.5 - 6	-	1500rpm	3000rpm	-	-	1800rpm	3600rpm
1.5 x 3 - 6	-	1500rpm	3000rpm	-	-	1800rpm	3600rpm
2 x 3 - 6	-	1500rpm	3000rpm	-	-	1800rpm	3600rpm
1 x 1.5 - 8	-	1500rpm	3000rpm	-	-	1800rpm	3600rpm
1.5 x 3 - 8	-	1500rpm	3000rpm	-	-	1800rpm	3600rpm
3 x 4 - 7	-	1500rpm	3000rpm	-	-	1800rpm	3600rpm
2 x 3 - 8	-	1500rpm	3000rpm	-	-	1800rpm	3600rpm
3 x 4 - 8	-	1500rpm	3000rpm	-	1200rpm	1800rpm	3600rpm
3 x 4 - 8G	-	1500rpm	3000rpm	-	-	1800rpm	3600rpm
1 x 2 - 10	-	1500rpm	3000rpm	-	1200rpm	1800rpm	3600rpm
1.5 x 3 - 10	-	1500rpm	3000rpm	-	1200rpm	1800rpm	3600rpm
2 x 3 - 10	-	1500rpm	3000rpm	-	1200rpm	1800rpm	3600rpm
3 x 4 - 10	-	1500rpm	3000rpm	-	-	1800rpm	3600rpm
3 x 4 - 10H	1000rpm	1500rpm	-	-	1200rpm	1800rpm	-
4 x 6 - 10G	1000rpm	1500rpm	3000rpm	-	1200rpm	1800rpm	3600rpm
4 x 6 - 10H	1000rpm	1500rpm	-	-	1200rpm	1800rpm	-
1.5 x 3 - 13	-	1500rpm	3000rpm	-	1200rpm	1800rpm	3600rpm
2 x 3 - 13	-	1500rpm	3000rpm	-	1200rpm	1800rpm	3600rpm
3 x 4 - 13	1000rpm	1500rpm	3000rpm	-	1200rpm	1800rpm	3600rpm
4 x 6 - 13	1000rpm	1500rpm	-	-	1200rpm	1800rpm	-
6 x 8 - 13	1000rpm	1500rpm	-	-	1200rpm	1800rpm	-
8 x 10 - 13	1000rpm	1500rpm	-	-	1200rpm	1800rpm	-
6 x 8 - 15	1000rpm	1500rpm	-	-	1200rpm	1800rpm	-
8 x 10 - 15	1000rpm	1500rpm	-	-	1200rpm	1800rpm	-
8 x 10 - 15G	1000rpm	1500rpm	-	900rpm	1200rpm	1800rpm	-
8 x 10 - 16H	1000rpm	1500rpm	-	900rpm	1200rpm	1800rpm	-
4 x 6 - 17	1000rpm	1500rpm	-	-	1200rpm	1800rpm	-
6 x 8 - 17	1000rpm	1500rpm	-	-	1200rpm	1800rpm	-
8 x 10 - 17	1000rpm	1500rpm	-	900rpm	1200rpm	1800rpm	-
