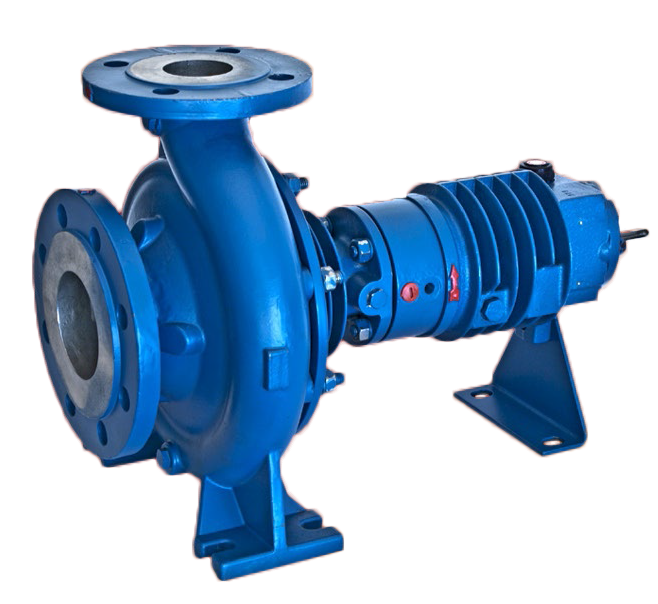

XTP Series

Thermic Fluid / Hot Oil Centrifugal Pump (OH1) ISO 2858/5199

XTP Series pumps are specifically designed to handle thermal fluids up to 320°C (608°F) without special cooling systems. The heat from the pumped product is greatly blocked by special "heat barrier" chamber located between the pump casing and the impeller.

The bearing frame has been especially designed with cooling fins to effectively dissipate the heat coming from the pump casing. The rotor is supported with oversized ball bearings of the C3 series that are lubricated with medium viscosity oil.

Materials of construction are carbon steel or 316 stainless steel.

XTP Specifications

Maximum Capacity: 1,540gpm (350m³/h)
Maximum TDH: 525ft (160m)
Maximum Temperature: 600°F (320°C)
Maximum Pressure: 230psi (16bar)
Designed according to ISO 2858/5199 standard.

XTP Features

Heat barrier plate for better heat dissipation.
Cooling fins to eliminate use of external cooling systems.
Maximum temperature up to 320°C.
Materials available in cast iron and 316 stainless steel.
Designed to handle thermic fluids and hot oils.

XTP Applications

Hot Oil	Thermal Liquid	Heat Transfer
High Temp Services	OEM Applications	High Temp Services
Asphalt Services	Petroleum Products	Warm Oil Systems

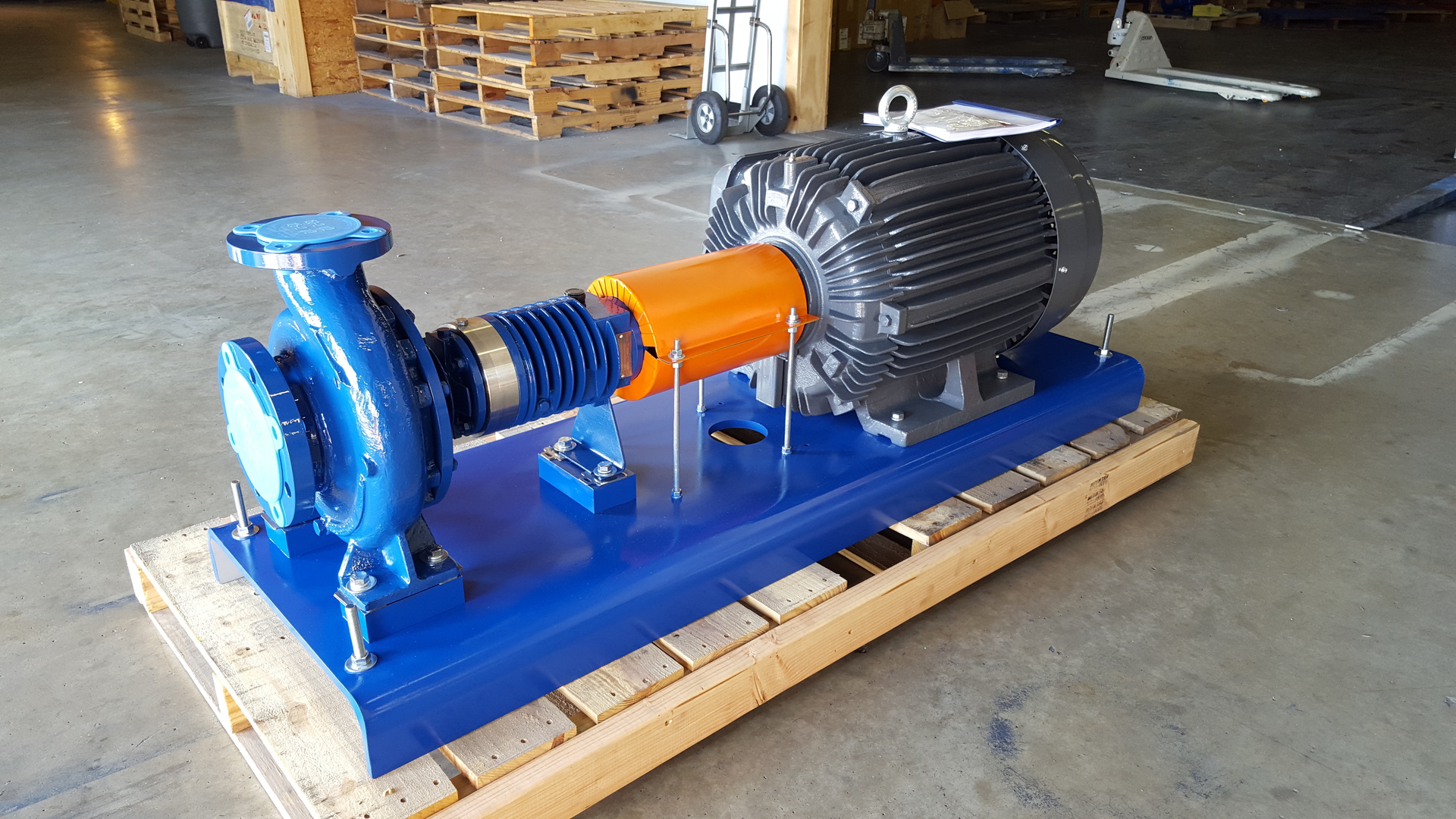

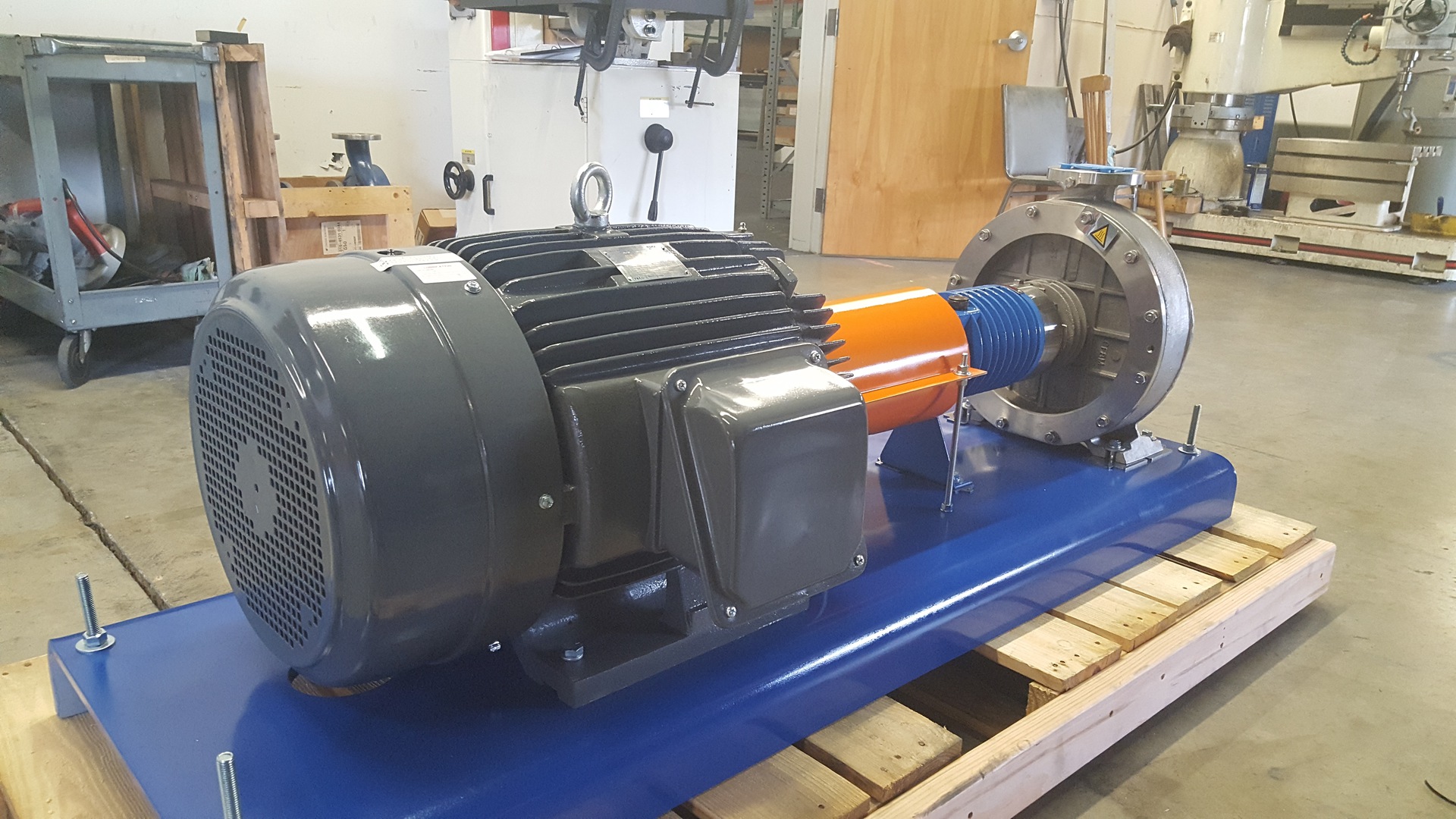

XTP Images

XTP Literature

Select the literature below for XTP Series to access the corresponding document.

XTP Brochure	XTP Drawings
XTP Curves	XTP Manuals

Check out our Resource Center to view, print or download our product catalog, pump brochures, IOM manuals, performance curves, dimensional drawings and more.

XTP Pump Sizes

Select the pump size below to view, print or download the corresponding XTP dimensional drawing and performance curves.

Size	50Hz		60Hz
50 x 32 - 125	1500rpm	3000rpm	1800rpm	3600rpm
65 x 40 - 125	1500rpm	3000rpm	1800rpm	3600rpm
50 x 32 - 160	1500rpm	3000rpm	1800rpm	3600rpm
65 x 40 - 160	1500rpm	3000rpm	1800rpm	3600rpm
80 x 50 - 160	1500rpm	3000rpm	1800rpm	3600rpm
100 x 80 - 160	1500rpm	3000rpm	1800rpm	3600rpm
50 x 32 - 200	1500rpm	3000rpm	1800rpm	3600rpm
65 x 40 - 200	1500rpm	3000rpm	1800rpm	3600rpm
80 x 50 - 200	1500rpm	3000rpm	1800rpm	3600rpm
100 x 65 - 200	1500rpm	3000rpm	1800rpm	3600rpm
125 x 80 - 200	1500rpm	3000rpm	1800rpm	3600rpm
125 x 100 - 200	1500rpm	3000rpm	1800rpm	3600rpm
50 x 32 - 250	1500rpm	3000rpm	1800rpm	3600rpm
65 x 40 - 250	1500rpm	3000rpm	1800rpm	3600rpm
80 x 50 - 250	1500rpm	3000rpm	1800rpm	3600rpm
100 x 65 - 250	1500rpm	3000rpm	1800rpm	3600rpm
125 x 80 - 250	1500rpm	3000rpm	1800rpm	3600rpm
65 x 40 - 315	1500rpm	3000rpm	1800rpm	3600rpm
80 x 50 - 315	1500rpm	3000rpm	1800rpm	3600rpm
100 x 65 - 315	1500rpm	3000rpm	1800rpm	3600rpm
